markdown绘制简单流程图

2022-02-07

Markdown绘制简单流程图；

Typora流程图：

mermaid效果（这个可以在Typora编辑器中显示，博客中渲染失败）

输入```，然后输入mermaid即可

·mermaid
graph TD
   B((开始)) -->C{判断}
   C --  a=1 -->D[执行语句1]
   C --  a=2  -->E[执行语句2]
   C --  a=3 -->F[执行语句3]
   C -- a=4  -->G[执行语句4]
   D--> AA((结束))
   E--> AA
   F--> AA
   G--> AA

如下图：

a4e80fed35165401f57d392375ac726

语法：

官网说明文档 Mermaid .

flowchar效果（只有这个可以在博客中显示流程图）

···flow
st=>start: 开始节点
in=>inputoutput: 输入
e=>end: 结束节点
op=>operation: 操作节点
cond=>condition: 条件节点
sub=>subroutine: 子例程
out=>inputoutput: 输出
st(right)->in->op->cond
cond(yes,right)->out->e
cond(no)->sub

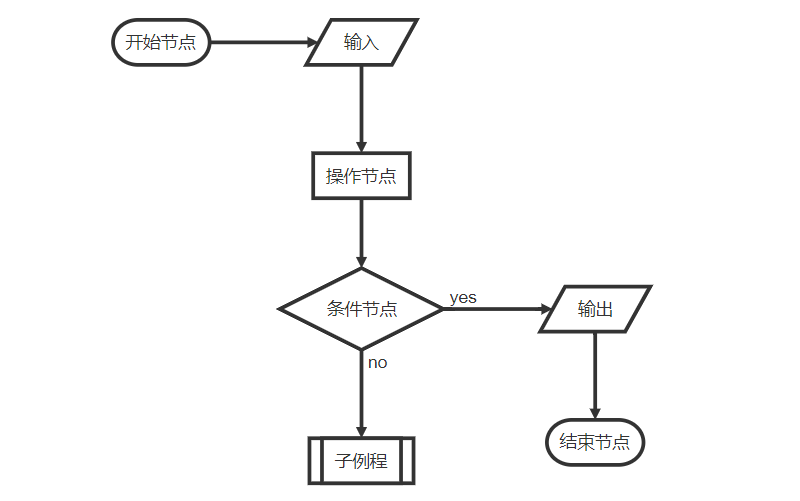

实际例子1：

···flow
st=>start: Start
i=>inputoutput: 输入年份n
cond1=>condition: n能否被4整除？
cond2=>condition: n能否被100整除？
cond3=>condition: n能否被400整除？
o1=>inputoutput: 输出非闰年
o2=>inputoutput: 输出非闰年
o3=>inputoutput: 输出闰年
o4=>inputoutput: 输出闰年
e=>end
st->i->cond1
cond1(no)->o1->e
cond1(yes)->cond2
cond2(no)->o3->e
cond2(yes)->cond3
cond3(yes)->o2->e
cond3(no)->o4->e

实际例子2：

···flow
st=>start: start:>http://www.baidu.com
op1=>operation: 操作1
cond1=>condition: YES or NO?
sub=>subroutine: 子程序
e=>end

st->op1->cond1
cond1(yes)->e
cond1(no)->sub(right)->op1

综合例子：

···flow
st=>start: Improve your
l10n process!
e=>end: Continue to have fun!:>https://youtu.be/YQryHo1iHb8[blank]
op1=>operation: Go to locize.com:>https://locize.com[blank]
sub1=>subroutine: Read the awesomeness
cond(align-next=no)=>condition: Interested to
getting started?
io=>inputoutput: Register:>https://www.locize.io/register[blank]
sub2=>subroutine: Read about improving
your localization workflow
or another source:>https://medium.com/@adrai/8-signs-you-should-improve-your-localization-process-3dc075d53998[blank]
op2=>operation: Login:>https://www.locize.io/login[blank]
cond2=>condition: valid password?
cond3=>condition: reset password?
op3=>operation: send email
sub3=>subroutine: Create a demo project
sub4=>subroutine: Start your real project
io2=>inputoutput: Subscribe

st->op1->sub1->cond
cond(yes)->io->op2->cond2
cond2(no)->cond3
cond3(no,bottom)->op2
cond3(yes)->op3
op3(right)->op2
cond2(yes)->sub3
sub3->sub4->io2->e
cond(no)->sub2(right)->op1
st@>op1({"stroke":"Red"})@>sub1({"stroke":"Red"})@>cond({"stroke":"Red"})@>io({"stroke":"Red"})@>op2({"stroke":"Red"})@>cond2({"stroke":"Red"})@>sub3({"stroke":"Red"})@>sub4({"stroke":"Red"})@>io2({"stroke":"Red"})@>e({"stroke":"Red","stroke-width":6,"arrow-end":"classic-wide-long"})

语法：

官网说明文档 FlowChar .

st=>start: Start i=>inputoutput: 输入年份n cond1=>condition: n能否被4整除？ cond2=>condition: n能否被100整除？ cond3=>condition: n能否被400整除？ o1=>inputoutput: 输出非闰年 o2=>inputoutput: 输出非闰年 o3=>inputoutput: 输出闰年 o4=>inputoutput: 输出闰年 e=>end st->i->cond1 cond1(no)->o1->e cond1(yes)->cond2 cond2(no)->o3->e cond2(yes)->cond3 cond3(yes)->o2->e cond3(no)->o4->e{"scale":1,"line-width":2,"line-length":50,"text-margin":10,"font-size":12}st=>start: start:>http://www.baidu.com op1=>operation: 操作1 cond1=>condition: YES or NO? sub=>subroutine: 子程序 e=>end st->op1->cond1 cond1(yes)->e cond1(no)->sub(right)->op1{"scale":1,"line-width":2,"line-length":50,"text-margin":10,"font-size":12}st=>start: Improve your l10n process! e=>end: Continue to have fun!:>https://youtu.be/YQryHo1iHb8[blank] op1=>operation: Go to locize.com:>https://locize.com[blank] sub1=>subroutine: Read the awesomeness cond(align-next=no)=>condition: Interested to getting started? io=>inputoutput: Register:>https://www.locize.io/register[blank] sub2=>subroutine: Read about improving your localization workflow or another source:>https://medium.com/@adrai/8-signs-you-should-improve-your-localization-process-3dc075d53998[blank] op2=>operation: Login:>https://www.locize.io/login[blank] cond2=>condition: valid password? cond3=>condition: reset password? op3=>operation: send email sub3=>subroutine: Create a demo project sub4=>subroutine: Start your real project io2=>inputoutput: Subscribe st->op1->sub1->cond cond(yes)->io->op2->cond2 cond2(no)->cond3 cond3(no,bottom)->op2 cond3(yes)->op3 op3(right)->op2 cond2(yes)->sub3 sub3->sub4->io2->e cond(no)->sub2(right)->op1 st@>op1({"stroke":"Red"})@>sub1({"stroke":"Red"})@>cond({"stroke":"Red"})@>io({"stroke":"Red"})@>op2({"stroke":"Red"})@>cond2({"stroke":"Red"})@>sub3({"stroke":"Red"})@>sub4({"stroke":"Red"})@>io2({"stroke":"Red"})@>e({"stroke":"Red","stroke-width":6,"arrow-end":"classic-wide-long"}){"scale":1,"line-width":2,"line-length":50,"text-margin":10,"font-size":12}
