基于STM32的CMAKE模板

这是一个基于STM32单片机的模板；

示例中的单片机是STM32H743IIT6，调试器使用JlinkOB；

其中的各个参数可以参考使用STM32CubeMX生成的基于makefile的模板，且后续仍然可以使用STM32CubeMX进行底层代码的构建；

如果需要进行调试，可以先启动J-Link GDB Server，然后使用VSCode进行调试或者直接使用命令行进行调试；

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
# CMAKE_SYSTEM_NAME: 即你目标机target所在的操作系统名称，比如ARM或者Linux你就需要写"Linux";
# 如果Windows平台你就写"Windows",如果你的嵌入式平台没有相关OS你即需要写成"Generic";
# 只有当CMAKE_SYSTEM_NAME这个变量被设置了，CMake才认为此时正在交叉编译;
# 它会额外设置一个变量CMAKE_CROSSCOMPILING为TRUE;
set(CMAKE_SYSTEM_NAME Generic)

# CMAKE_SYSTEM_NAME和CMAKE_SYSTEM_PROCESSOR是交叉编译的时候必须指定的两个参数;
# 如果在cmake命令行定义了CMAKE_SYSTEM_NAME,就必须也定义CMAKE_SYSTEM_PROCESSOR;
set(CMAKE_SYSTEM_PROCESSOR cortex-m7)

#cmake最低版本
cmake_minimum_required(VERSION 3.1.0)

#编译工具
set(CROSS_COMPILE_PREFIX arm-none-eabi)
# 顾名思义，即C语言编译器，这里可以将变量设置成完整路径或者文档名;
# 设置成完整路径有一个好处就是CMake会去这个路径下去寻找编译相关的其他工具;
# 比如linker,binutils等，如果你写的文档名带有arm-elf等等前缀;
# CMake会识别到并且去寻找相关的交叉编译器;
set(CMAKE_C_COMPILER ${CROSS_COMPILE_PREFIX}-gcc)
set(CMAKE_CXX_COMPILER ${CROSS_COMPILE_PREFIX}-g++)
set(CMAKE_ASM_COMPILER ${CROSS_COMPILE_PREFIX}-gcc)
set(CMAKE_OBJCOPY ${CROSS_COMPILE_PREFIX}-objcopy)
set(CMAKE_OBJDUMP ${CROSS_COMPILE_PREFIX}-objdump)
set(CMAKE_SIZE ${CROSS_COMPILE_PREFIX}-size)

# CMake中的命令find_program用于查找程序(program)
# 会将查找到的文档路径存在CMakeCache.txt中
find_program(ARM_SIZE_EXECUTABLE ${CROSS_COMPILE_PREFIX}-size)
find_program(ARM_GDB_EXECUTABLE ${CROSS_COMPILE_PREFIX}-gdb)
find_program(ARM_OBJCOPY_EXECUTABLE ${CROSS_COMPILE_PREFIX}-objcopy)
find_program(ARM_OBJDUMP_EXECUTABLE ${CROSS_COMPILE_PREFIX}-objdump)

set(CMAKE_TRY_COMPILE_TARGET_TYPE STATIC_LIBRARY)


# search for program/library/include in the build host directories
# 1、CMAKE_FIND_ROOT_PATH_MODE_PROGRAM: 对FIND_PROGRAM()起作用，
# 有三种取值，NEVER,ONLY,BOTH,
#   第一个表示不在你CMAKE_FIND_ROOT_PATH下进行查找，
#   第二个表示只在这个路径下查找，
#   第三个表示先查找这个路径，再查找全局路径，
# 对于这个变量来说，一般都是调用宿主机的程序，所以一般都设置成NEVER
#
# 2、CMAKE_FIND_ROOT_PATH_MODE_LIBRARY: 对FIND_LIBRARY()起作用，
# 表示在链接的时候的库的相关选项，因此这里需要设置成ONLY来保证我们的库是在交叉环境中找的.
#
# 3、CMAKE_FIND_ROOT_PATH_MODE_INCLUDE: 对FIND_PATH()和FIND_FILE()起作用，
# 一般来说也是ONLY,如果你想改变，一般也是在相关的FIND命令中增加option来改变局部设置
# 有NO_CMAKE_FIND_ROOT_PATH,ONLY_CMAKE_FIND_ROOT_PATH,BOTH_CMAKE_FIND_ROOT_PATH
set(CMAKE_FIND_ROOT_PATH_MODE_PROGRAM NEVER)
set(CMAKE_FIND_ROOT_PATH_MODE_LIBRARY ONLY)
set(CMAKE_FIND_ROOT_PATH_MODE_INCLUDE ONLY)
set(CMAKE_FIND_ROOT_PATH_MODE_PACKAGE ONLY)

#工程名称
# project命令用于指定cmake工程的名称
# 实际上，它还可以指定cmake工程的版本号（VERSION关键字）、
# 简短的描述（DESCRIPTION关键字）、
# 主页URL（HOMEPAGE_URL关键字）、
# 编译工程使用的语言（LANGUAGES关键字）。
project(H743_demo C CXX ASM)

set(target "${PROJECT_NAME}")
set(COMPILE_TOOLS  GCC)

# Target-specific flags
#型号
set(MCU_FAMILY STM32H743xx)
#布局文档
set(LINKER_SCRIPT ${CMAKE_CURRENT_SOURCE_DIR}/STM32H743IITx_FLASH.ld)
#内核相关
set(CPU "-mcpu=cortex-m7")
set(FPU "-mfpu=fpv5-d16")
set(FLOAT_ABI "-mfloat-abi=hard")

#宏定义
add_definitions(-DUSE_HAL_DRIVER -DSTM32H743xx)

# 构建Release或者Debug版本
if(CMAKE_BUILD_TYPE MATCHES Debug)
    set(DBG_FLAGS "-g3 -gdwarf-2 -O0")
elseif(CMAKE_BUILD_TYPE MATCHES Release)
    set(DBG_FLAGS "-O3")
endif()


##file语法,前一个参数是固定的 后面一个参数自己定义
##添加文档的时候注意 相对路径和绝对路径
file(GLOB_RECURSE DRIVE_SRC
    Drivers/STM32H7xx_HAL_Driver/Src/stm32h7xx_hal_cortex.c
    Drivers/STM32H7xx_HAL_Driver/Src/stm32h7xx_hal_rcc.c
    Drivers/STM32H7xx_HAL_Driver/Src/stm32h7xx_hal_rcc_ex.c
    Drivers/STM32H7xx_HAL_Driver/Src/stm32h7xx_hal_flash.c
    Drivers/STM32H7xx_HAL_Driver/Src/stm32h7xx_hal_flash_ex.c
    Drivers/STM32H7xx_HAL_Driver/Src/stm32h7xx_hal_gpio.c
    Drivers/STM32H7xx_HAL_Driver/Src/stm32h7xx_hal_hsem.c
    Drivers/STM32H7xx_HAL_Driver/Src/stm32h7xx_hal_dma.c
    Drivers/STM32H7xx_HAL_Driver/Src/stm32h7xx_hal_dma_ex.c
    Drivers/STM32H7xx_HAL_Driver/Src/stm32h7xx_hal_mdma.c
    Drivers/STM32H7xx_HAL_Driver/Src/stm32h7xx_hal_pwr.c
    Drivers/STM32H7xx_HAL_Driver/Src/stm32h7xx_hal_pwr_ex.c
    Drivers/STM32H7xx_HAL_Driver/Src/stm32h7xx_hal.c
    Drivers/STM32H7xx_HAL_Driver/Src/stm32h7xx_hal_i2c.c
    Drivers/STM32H7xx_HAL_Driver/Src/stm32h7xx_hal_i2c_ex.c
    Drivers/STM32H7xx_HAL_Driver/Src/stm32h7xx_hal_exti.c
    Drivers/STM32H7xx_HAL_Driver/Src/stm32h7xx_hal_tim.c
    Drivers/STM32H7xx_HAL_Driver/Src/stm32h7xx_hal_tim_ex.c
    Core/Src/system_stm32h7xx.c
    startup_stm32h743xx.s
)
file(GLOB_RECURSE USER_SRC
    Core/Src/main.c
    Core/Src/gpio.c
    Core/Src/stm32h7xx_it.c
    Core/Src/stm32h7xx_hal_msp.c
)
# 添加源文件
set(SOURCE_FILES  ${DRIVE_SRC} ${USER_SRC})
#添加头文件路径
include_directories(
    ${CMAKE_CURRENT_SOURCE_DIR}/Core/Inc
    ${CMAKE_CURRENT_SOURCE_DIR}/Drivers/STM32H7xx_HAL_Driver/Inc
    ${CMAKE_CURRENT_SOURCE_DIR}/Drivers/STM32H7xx_HAL_Driver/Inc/Legacy
    ${CMAKE_CURRENT_SOURCE_DIR}/Drivers/CMSIS/Device/ST/STM32H7xx/Include
    ${CMAKE_CURRENT_SOURCE_DIR}/Drivers/CMSIS/Include
)

#芯片特性
set(MCU_FLAGS "${CPU} -mthumb ${FPU} ${FLOAT_ABI}")
# compiler: language specific flags CFLAGS
set(CMAKE_C_FLAGS   "${MCU_FLAGS} -std=gnu99 -Wall -fdata-sections -ffunction-sections ${DBG_FLAGS} " CACHE INTERNAL "C compiler flags")
#CPP
set(CMAKE_CXX_FLAGS "${MCU_FLAGS} -fno-rtti -fno-exceptions -fno-builtin -Wall -fdata-sections -ffunction-sections ${DBG_FLAGS} " CACHE INTERNAL "Cxx compiler flags")
#ASFLAGS
set(CMAKE_ASM_FLAGS "${MCU_FLAGS} -x assembler-with-cpp ${DBG_FLAGS} " CACHE INTERNAL "ASM compiler flags")
#LDFLAGS -mcpu=cortex-m0plus -mthumb
set(CMAKE_EXE_LINKER_FLAGS "${MCU_FLAGS} --specs=nosys.specs -specs=nano.specs -T${LINKER_SCRIPT} -Wl,-Map=${PROJECT_NAME}.map,--cref -Wl,--gc-sections" CACHE INTERNAL "Exe linker flags")
#要链接的库 对应makefile的 LIBS
set(CMAKE_SHARED_LIBRARY_LINK_C_FLAGS "-lc -lm -lnosys" CACHE INTERNAL "Shared linker flags")


#先定义target 才可以添加define include
add_executable(${target}.elf ${SOURCE_FILES})

set(ELF_FILE ${PROJECT_BINARY_DIR}/${target}.elf)
set(HEX_FILE ${PROJECT_BINARY_DIR}/${target}.hex)
set(BIN_FILE ${PROJECT_BINARY_DIR}/${target}.bin)

add_custom_command(TARGET "${target}.elf" POST_BUILD
    COMMAND ${CMAKE_OBJCOPY} -Obinary ${ELF_FILE} ${BIN_FILE}
    COMMAND ${CMAKE_OBJCOPY} -Oihex  ${ELF_FILE} ${HEX_FILE}
    COMMENT "Building ${target}.bin and ${target}.hex"

    COMMAND ${CMAKE_COMMAND} -E copy ${HEX_FILE} "${CMAKE_CURRENT_BINARY_DIR}/${target}.hex"
    COMMAND ${CMAKE_COMMAND} -E copy ${BIN_FILE} "${CMAKE_CURRENT_BINARY_DIR}/${target}.bin"

    COMMAND ${CMAKE_SIZE} --format=berkeley ${target}.elf ${target}.hex
    COMMENT "Invoking: Cross ARM GNU Print Size"
)

使用方式：

1
2
3
4
5
mkdir build
cd build/
#cmake .. 	#在Linux平台下
cmake -G "MinGW Makefiles" .. #在windows平台下
make -j     #多线程编译

使用VSCode进行调试的launch.json文件如下所示：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
{
    "version": "0.2.0",
    "configurations": [
        {
            "name": "H743_demo",
            "type": "cppdbg",
            "request": "launch",
            "program": "${workspaceFolder}/build/H743_demo.elf",
            "args": [],
            "stopAtEntry": false,
            "cwd": "${workspaceFolder}",
            "environment": [],
            "externalConsole": false,
            "MIMode": "gdb",
            "miDebuggerPath": "D:\\Program Files (x86)\\GNU Tools ARM Embedded\\5.4 2016q3\\bin\\arm-none-eabi-gdb.exe",
            "miDebuggerServerAddress": "localhost:2331"
            "setupCommands": [
                {
                    "description": "为 gdb 启用整齐打印",
                    "text": "-enable-pretty-printing",
                    "ignoreFailures": true
                }
            ],
        }
    ]
}

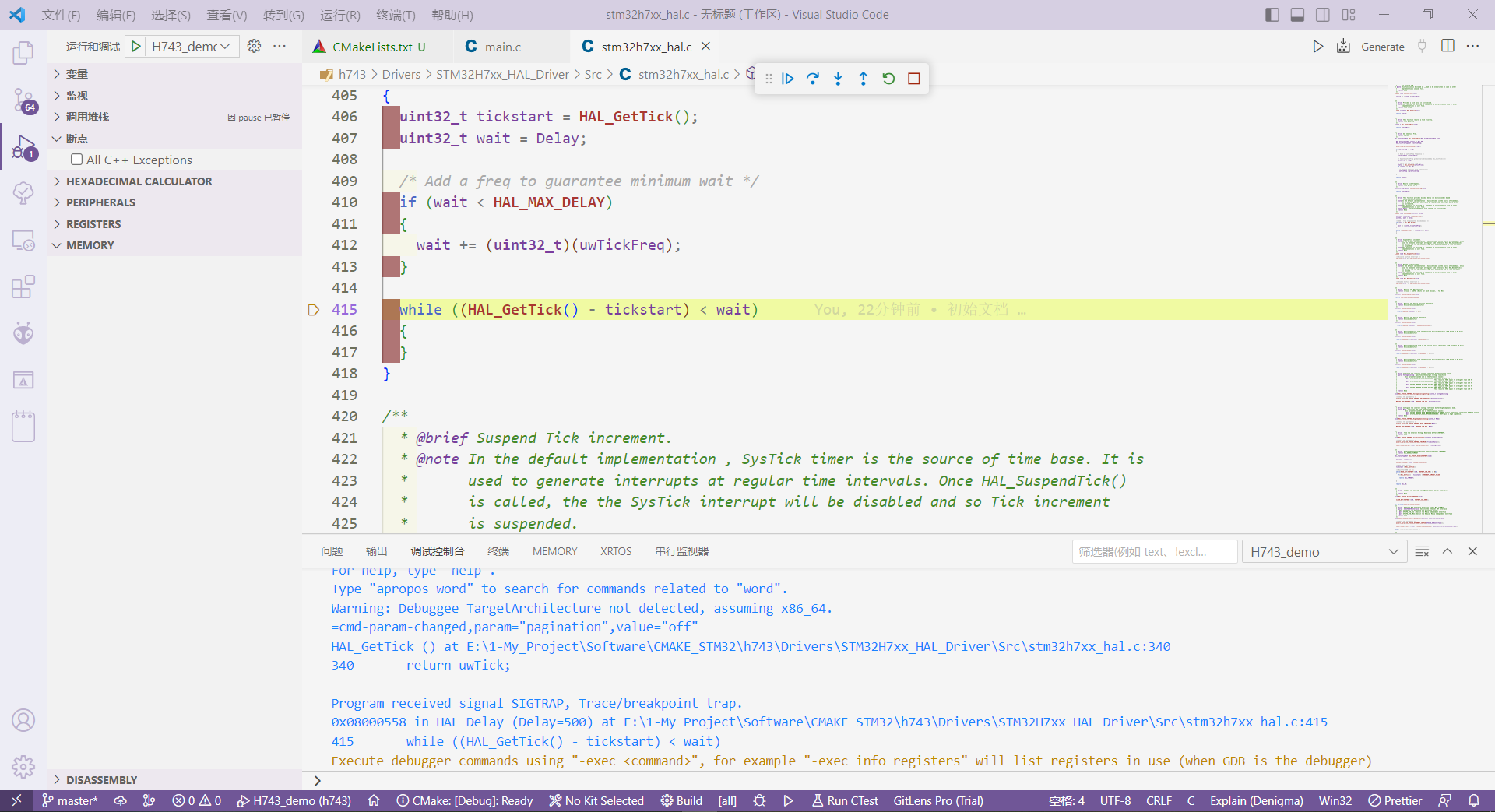

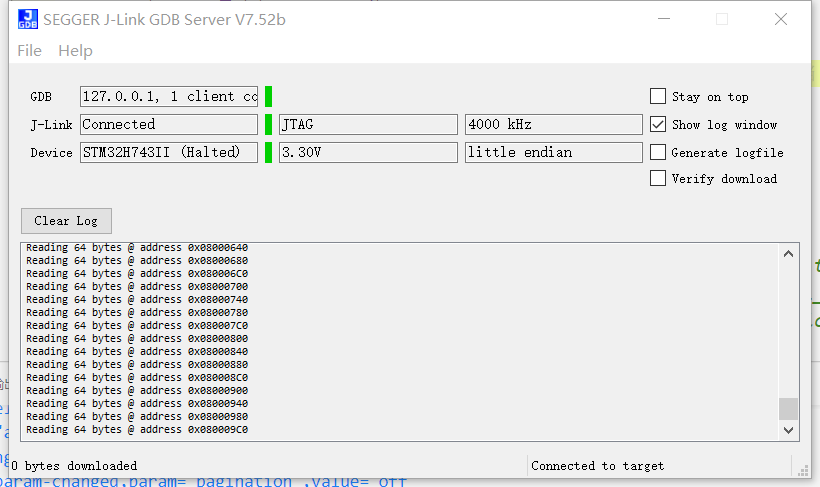

最后成功进行调试：

692d5762b6582ca4aad8e9b7b9246ec
e942bd42bc7c5b5eef171a9d0c25ead

若要使用printf或者sprintf函数，需要自己底层实现一些函数；

例如使用printf:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
#ifdef __GNUC__
#define PUTCHAR_PROTOTYPE int __io_putchar(int ch)
int _write(int fd, char *pBuffer, int size)
{
    HAL_UART_Transmit(&huart1, (uint8_t *)pBuffer, size, 0xFFFF);
    return size;
}
#else
#define PUTCHAR_PROTOTYPE int fputc(int ch, FILE *f)
PUTCHAR_PROTOTYPE
{
    HAL_UART_Transmit(&huart1, (uint8_t *)&ch, 1, 0xFFFF);
    return ch;
}
#endif
